2006 Hummer H1 Stereo Wiring Diagrams

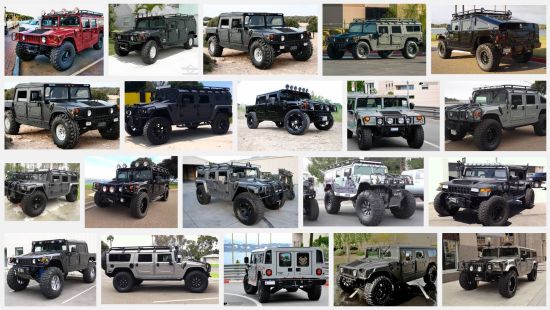

About 2006 Hummer H1
- 2006 HUMMER H1
- Luxury vehicle
- Towing capacity: 7,542 to 7,887 lbs
- Horsepower: 300 HP
- Engine: 6.6L V8 diesel
- Fuel tank capacity: 28.5 gal
- Wheel size: 17" diameter, 10" width
2006 Hummer H1 Stereo Wiring Diagrams :
- 2006 Hummer H1 Car Stereo Wiring Diagram
- Car Radio Battery Constant 12v+ Wire: Orange
- Car Radio Accessory Switched 12v+ Wire: Yellow
- Car Radio Ground Wire: Black
- Car Radio Illumination Wire: Gray
- Car Stereo Dimmer Wire: Brown
- Car Stereo Antenna Trigger Wire: Pink
- Car Stereo Amp Trigger Wire: N/A
- Car Stereo Amplifier Location: N/A
- Car Audio Front Speakers Size: N/A
- Car Audio Front Speakers Location: N/A
- Left Front Speaker Positive Wire (+): Tan
- Left Front Speaker Negative Wire (-): Gray
- Right Front Speaker Positive Wire (+): Light Green
- Right Front Speaker Negative Wire (-): Dark Green
- Car Audio Rear Speakers Size: N/A
- Car Audio Rear Speakers Location: N/A
- Left Rear Speaker Positive Wire (+): Brown
- Left Rear Speaker Negative Wire (-): Yellow
- Right Rear Speaker Positive Wire (+): Dark Blue
- Right Rear Speaker Negative Wire (-): Light Blue
