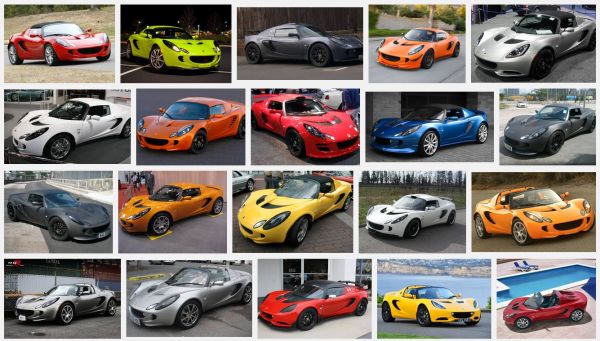

2006 Lotus Elise
About 2006 Lotus Elise
- 2006 Lotus Elise
- Luxury vehicle
- MPG: 24 city / 29 highway
- Horsepower: 190 HP
- Engine: 1.8L 4-cylinder
- Fuel tank capacity: 10.6 gal
- Wheel size: Front 16 Inch diameter, 5.5 Inch width; rear 17 Inch diameter, 7.5 Inch width
- Other model years: 2005, 2007, 2008
2006 Lotus Elise Car Stereo Wiring Diagram :
- 2006 Lotus Elise Car Radio Installation Instructions
- Car Radio Battery Constant 12V+ Wire: Violet
- Car Radio Accessory Switched 12V+ Wire: Green/Red
- Car Radio Ground Wire: Black
- Car Radio Illumination Wire: Red/Orange
- Car Radio Dimmer Wire: N/A
- Car Radio Antenna Trigger Wire: N/A
- Car Radio Amp Trigger Wire: N/A
- Car Stereo Amplifier Location: N/A
- Car Audio Front Tweeter Size: N/A
- Car Audio Front Tweeter Depth: N/A
- Car Audio Front Tweeter Location: N/A
- Left Front Speaker Positive Wire (+): Black/White
- Left Front Speaker Negative Wire (-): Black/Gray
- Right Front Speaker Positive Wire (+): Black/Gray
- Right Front Speaker Negative Wire (-): Black/White
- Car Audio Front Speakers Size: 5 1/4 Inch Speakers
- Car Audio Front Speakers Depth: 3 1/2 Inch
- Car Audio Front Speakers Location: N/A
- Left Rear Speaker Positive Wire (+): Black/White
- Left Rear Speaker Negative Wire (-): Black/Gray
- Right Rear Speaker Positive Wire (+): Black/White
- Right Rear Speaker Negative Wire (-): Black/Gray
- Car Audio Rear Speakers Size: 5 1/4 Inch Speakers
- Car Audio Rear Speakers Depth: 4 Inch
- Car Audio Rear Speakers Location: N/A
- Car Subwoofer Speaker Positive Wire (+): N/A
- Car Subwoofer Speaker Negative Wire (-): N/A
- Car Subwoofer Speaker Size: N/A
- Car Subwoofer Speaker Depth: N/A
- Car Subwoofer Speaker Location: N/A
