1996 Mitsubishi Diamante Stereo Wiring Diagrams

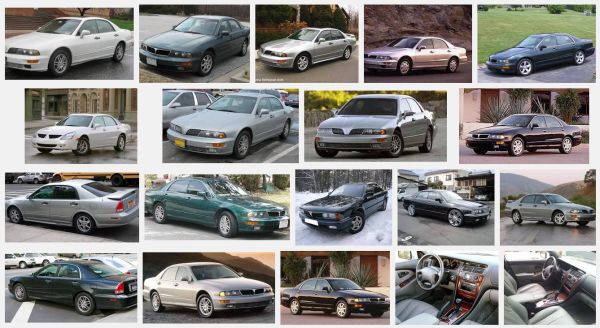

About 1996 Mitsubishi Diamante
- 1996 Mitsubishi Diamante
- Luxury vehicle
- MPG: 18 city / 25 highway
- Horsepower: 175 HP
- Engine: 3.0L V6
- Fuel tank capacity: 19 gal
- Warranty: 3 yr/36,000 mi basic, 5 yr/60,000 mi powertrain
- Other model years: 1994, 1995, 1997, 1998
1996 Mitsubishi Diamante Stereo Wiring Diagrams :
- 1996 Mitsubishi Diamante Car Radio Wire Diagram
- Car Radio Battery Constant 12v+ Wire: Red/Green
- Car Radio Accessory Switched 12v+ Wire: Blue
- Car Radio Ground Wire: Chassis
- Car Radio Illumination Wire: Green/White
- Car Stereo Dimmer Wire: Black/Yellow
- Car Stereo Antenna Trigger Wire: Pink
- Car Stereo Amp Trigger Wire: N/A
- Car Stereo Amplifier Location: N/A
- Car Audio Front Speakers Size: 5 1/4? Speakers
- Car Audio Front Speakers Location: Doors
- Left Front Speaker Positive Wire (+): Black/White
- Left Front Speaker Negative Wire (-): Black
- Right Front Speaker Positive Wire (+): Black/White
- Right Front Speaker Negative Wire (-): Black
- Car Audio Rear Speakers Size: 6? x 9? Speakers
- Car Audio Rear Speakers Location: Rear Deck
- Left Rear Speaker Positive Wire (+): Yellow/Red
- Left Rear Speaker Negative Wire (-): Green/Red
- Right Rear Speaker Positive Wire (+): Yellow/White
- Right Rear Speaker Negative Wire (-): Green/Blue
