2004 Mitsubishi Montero Stereo Wiring Diagrams

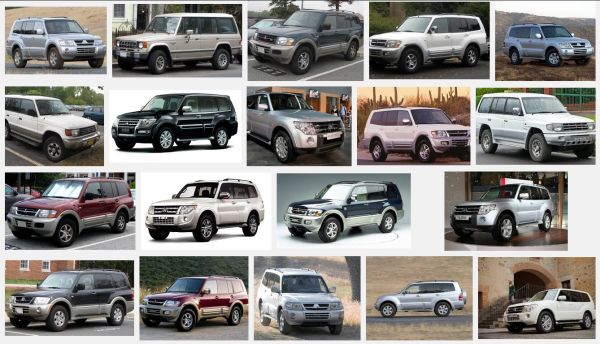

About 2004 Mitsubishi Montero
- 2004 Mitsubishi Montero
- Sport utility vehicle
- Towing capacity: 5,000 lbs
- MPG: 15 city / 19 highway
- Horsepower: 215 HP
- Engine: 3.8L V6
- Other model years: 2002, 2003, 2005, 2006
2004 Mitsubishi Montero Stereo Wiring Diagrams :
- 2004 Mitsubishi Montero Car Radio Stereo Audio Wiring Diagram
- Car Radio Battery Constant 12v+ Wire: Red/Black
- Car Radio Accessory Switched 12v+ Wire: Blue/Silver Dots
- Car Radio Ground Wire: Black
- Car Radio Illumination Wire: Green/White
- Car Stereo Dimmer Wire: Black/Yellow
- Car Stereo Antenna Trigger: N/A
- Car Stereo Amp Trigger Wire: N/A
- Car Stereo Amplifier Location: N/A
- Car Audio Front Speakers Size: N/A
- Car Audio Front Speakers Location: N/A
- Left Front Speaker Positive Wire (+): White/Blue
- Left Front Speaker Negative Wire (-): Black/Blue
- Right Front Speaker Positive Wire (+): White/Red
- Right Front Speaker Negative Wire (-): Black/Red
- Car Audio Rear Speakers Size: N/A
- Car Audio Rear Speakers Location: N/A
- Left Rear Speaker Positive Wire (+): Yellow/Blue
- Left Rear Speaker Negative Wire (-): Gray/Blue
- Right Rear Speaker Positive Wire (+): Yellow/Red
- Right Rear Speaker Negative Wire (-): Gray/Red
